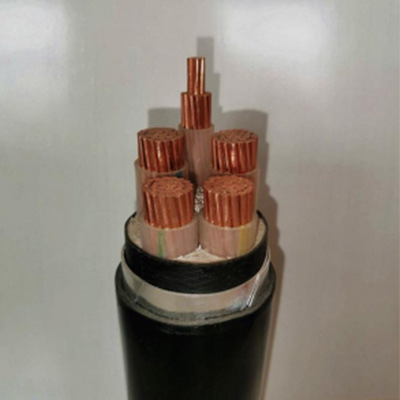

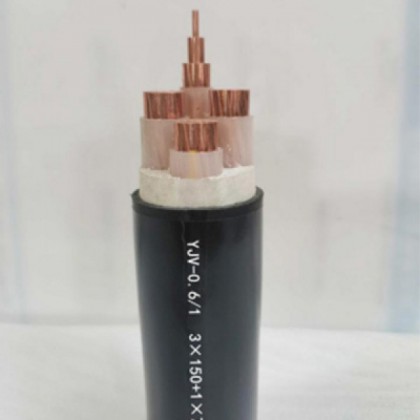

Low Voltage Power Cables
Product series model:
PVC insulation models: VV, VV62, VV22, VV23, VV32, VV33, etc. Cross linked polyethylene insulation models: YJV, YJY, YJV62, YJV22, YJY23, YJV72, YJV32, YJY73, YJV33, etc
Specification: 2.5-800mm2
Rated voltage: 0.6/1kV, 1.8/3kV
Flame retardant properties: ZA, ZB, ZC
Combustion performance code: N: fire-resistant W: halogen-free D: low smoke Z: flame retardant
Product Description
Product code
1. Conductor code
T: Copper conductor, omitting L: Aluminum conductor 2. Insulation code
V: Polyvinyl chloride (PVC) insulation YJ: Crosslinked polyethylene (XLPE) insulation 3. Inner lining layer code
V: Polyvinyl chloride (PVC) sheath Y: Polyethylene or polyolefin sheath 4. Armor code
2: Double steel strip armor 3: Fine round steel wire armor
4: Coarse round steel wire armor 6: Non magnetic metal tape armor 7: Non magnetic metal wire armor
5. Outer sheath code
2: Polyvinyl chloride (PVC) sheath 3: Polyethylene or polyolefin sheath
Product Usage
This series of products is suitable for energy distribution in power frequency rated voltage 0.6/1kV transmission and distribution systems.
