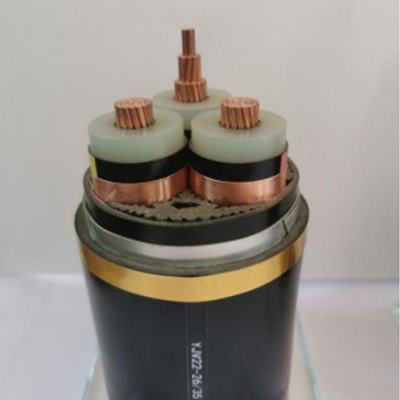

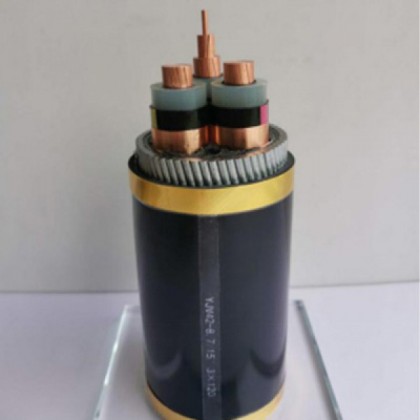

Medium Voltage Power Cables
Product series model
Models: YJV, YJY, YJV62, YJV22, YJY23, YJV72, YJV32, YJY73, YJV33, etc
Specification: 35-1600mm2 Rated voltage: 3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 18/20kV, 18/30kV, 21/35kV, 26/35kV, etc
Flame retardant properties: ZA, ZB, ZC
Combustion performance code: N: fire-resistant W: halogen-free D: low smoke Z: flame retardant
Product Description
Product code
1. Conductor code
T: Copper conductor, omitting L: Aluminum conductor 2. Insulation code
YJ: Cross linked polyethylene (XLPE) insulation 3. Inner lining layer code
V: Polyvinyl chloride (PVC) sheath Y: Polyethylene or polyolefin sheath 4. Armor code
2: Double steel strip armor 3: Fine round steel wire armor
4: Coarse round steel wire armor 6: Non magnetic metal tape armor
7: Non magnetic metal wire armor
5. Outer sheath code
2: Polyvinyl chloride (PVC) sheath 3: Polyethylene or polyolefin sheath
Product Usage
This series of products is suitable for electric energy distribution in power frequency rated voltage 3.6/6KV-26/35KV transmission and distribution systems
