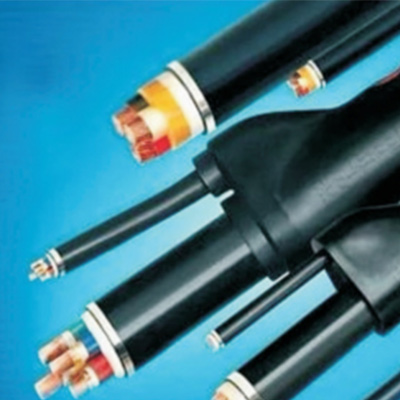

Prefabricated Branch Cables
Prefabricated branch cables
Prefabricated branch cables are complete and continuous sets of cables prefabricated by factories. According to the specified positions and requirements of the main cable, the conductors of the main cable and branch cable are compressed and connected through copper and copper aluminum alloy tubes, and undergo complete insulation treatment. When laying vertically, there is a suitable lifting device at the upper end; when laying horizontally, the traction component can be optionally selected. The cable ends at the lifting device or traction mechanism should have complete insulation treatment.
Product Description

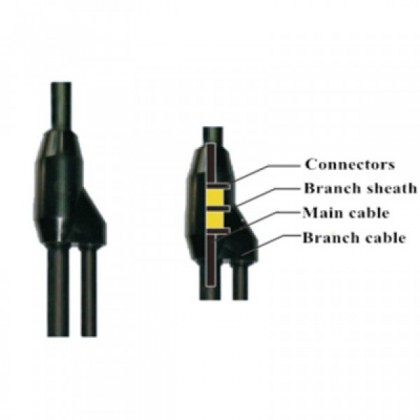

Branch connector
The main and branch cable conductors are sealed components that are compressed and connected through copper or copper alloy tubes and undergo complete insulation treatment.
Product performance
3.1 Rated voltage 06/1kV copper core plastic insulated prefabricated branch cable
3.2 Model and Name
Fzw copper core PVC insulated PVC sheathed prefabricated branch cable.
FzYV copper core cross-linked polyethylene insulation, PVC sheathed prefabricated branch cable.
Symbols and codes
4.1 Series code
Prefabricated branch cable YFD (marked as FZ in some design drawings)
4.2 Classified by material characteristics
Copper conductor omitted ;Polyethylene cross linked YJ polyethylene Y
4.3 Combustion characteristic code
Flame retardant Z, fire-resistant N, halogen-free W, low smoke D
